TKM38减速机

TKM38系列斜齿-准双曲面齿轮减速机产品介绍

TKM38系列减速机是一款专为替代NMRV063蜗轮蜗杆减速机而设计的高性能传动设备。它采用新一代的伞齿轮与斜齿轮组合传动结构，在保持紧凑体积的同时，实现了高达95%的传动效率与200N·m的峰值扭矩输出，为各类工业机械提供了更高的效率、强劲且节能的动力升级方案。

核心性能参数

• 产品型号：TKM38B（2级传动）、TKM38C（3级传动）

• 适配电机功率：0.12KW - 45KW（覆盖从小功率到中大功率的广泛应用需求）

• 减速比范围：7.5 - 300比（宽广的速比选择，精准匹配各类转速需求）

• 传动效率：95%（斜齿轮

• 与伞齿轮精密啮合，远超传统蜗轮蜗杆结构）

• 峰值扭矩：200N·m（具备出色的承载能力，轻松应对高负载工况）

• 安装兼容性：完美替代NMRV063，安装尺寸完全兼容，无需改动机械结构即可直接升级。

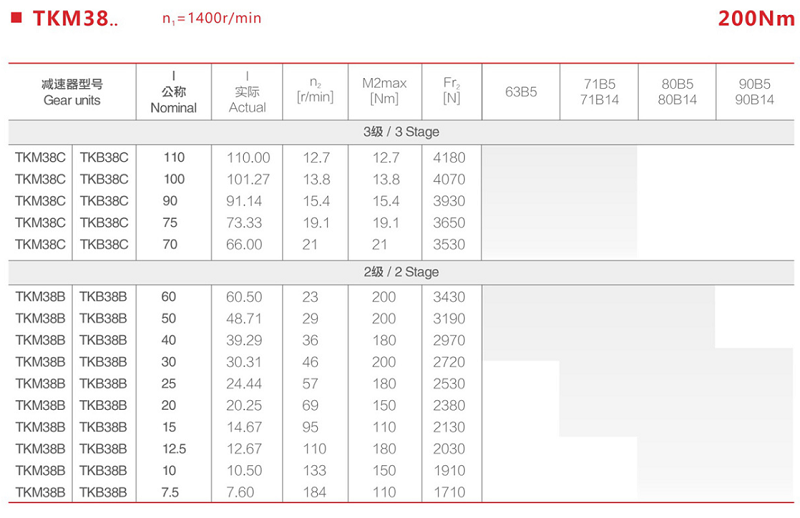

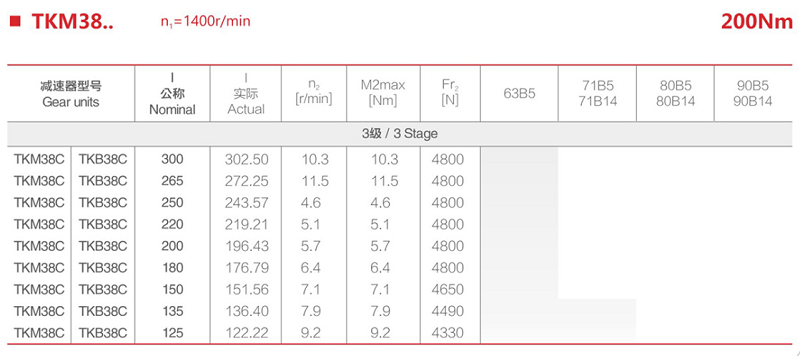

下面是TKM38B与TKM38C减速机的参数表

永传电机TKM38B减速机型号：TKM38B-30-Y0.12KW-4P,TKM38B-40-Y0.18KW-4P,TKM38B-30-Y0.25KW-4P,TKM38B-15-Y0.37KW-4P,TKM38B-7.5-Y0.55KW-4P,TKM38B-7.5-Y0.75KW-4P,TKM38B-7.5-Y1.1KW-4P,TKM38B-7.5-Y1.5KW-4P,TKM38B-40-Y0.12KW-4P,TKM38B-50-Y0.18KW-4P,TKM38B-40-Y0.25KW-4P,TKM38B-20-Y0.37KW-4P,TKM38B-10-Y0.55KW-4P,TKM38B-10-Y0.75KW-4P,TKM38B-10-Y1.1KW-4P,TKM38B-10-Y1.5KW-4P,TKM38B-50-Y0.12KW-4P,TKM38B-60-Y0.18KW-4P,TKM38B-50-Y0.25KW-4P,TKM38B-25-Y0.37KW-4P,TKM38B-12.5-Y0.55KW-4P,TKM38B-12.5-Y0.75KW-4P,TKM38B-12.5-Y1.1KW-4P,TKM38B-12.5-Y1.5KW-4P,TKM38B-60-Y0.12KW-4P,TKM38B-60-Y0.25KW-4P,TKM38B-30-Y0.37KW-4P,TKM38B-15-Y0.55KW-4P,TKM38B-15-Y0.75KW-4P,TKM38B-15-Y1.1KW-4P,TKM38B-15-Y1.5KW-4P,TKM38B-40-Y0.37KW-4P,TKM38B-20-Y0.55KW-4P,TKM38B-20-Y0.75KW-4P,TKM38B-20-Y1.1KW-4P,TKM38B-20-Y1.5KW-4P,TKM38B-50-Y0.37KW-4P,TKM38B-25-Y0.55KW-4P,TKM38B-25-Y0.75KW-4P,TKM38B-25-Y1.1KW-4P,TKM38B-25-Y1.5KW-4P,TKM38B-60-Y0.37KW-4P,TKM38B-30-Y0.55KW-4P,TKM38B-30-Y0.75KW-4P,TKM38B-30-Y1.1KW-4P,TKM38B-40-Y0.55KW-4P,TKM38B-40-Y0.75KW-4P,TKM38B-50-Y0.55KW-4P,TKM38B-50-Y0.75KW-4P,TKM38B-60-Y0.55KW-4P

• 永传电机TKM38C减速机型号：TKM38C-50-Y0.12KW-4P,TKM38C-50-Y0.18KW-4P,TKM38C-50-Y0.25KW-4P,TKM38C-50-Y0.37KW-4P,TKM38C-60-Y0.12KW-4P,TKM38C-60-Y0.18KW-4P,TKM38C-60-Y0.25KW-4P,TKM38C-60-Y0.37KW-4P,TKM38C-75-Y0.12KW-4P,TKM38C-75-Y0.18KW-4P,TKM38C-75-Y0.25KW-4P,TKM38C-100-Y0.12KW-4P,TKM38C-100-Y0.18KW-4P,TKM38C-100-Y0.25KW-4P,TKM38C-125-Y0.12KW-4P,TKM38C-125-Y0.18KW-4P,TKM38C-125-Y0.25KW-4P,TKM38C-150-Y0.12KW-4P,TKM38C-150-Y0.18KW-4P,TKM38C-200-Y0.12KW-4P,TKM38C-200-Y0.18KW-4P,TKM38C-250-Y0.12KW-4P,TKM38C-300-Y0.12KW-4P

•


产品核心优势

 适用领域

TKM38系列减速机凭借其体积小、扭矩大、效率高的特点，广泛应用于食品饮料加工机械、环保设备、包装机械、纺织印染设备、自动化输送线以及各类轻工机械设备中，是替代传统蜗轮蜗杆减速机、提升整机性能的理想选择。
