TKM28减速机

TKM28系列减速机是一款采用新一代伞齿轮与斜齿轮传动技术的高性能减速设备。该产品凭借高达95%的卓越传动效率，完美替代了传统的NMRV050蜗轮蜗杆减速机，为现代机械设备提供了更节能、更强劲的动力解决方案。

TKM28B减速机型号有：TKM28B-7.5-Y0.12KW-4P,TKM28B-7.5-Y0.18KW-4P,TKM28B-15-Y0.25KW-4P,TKM28B-7.5-Y0.37KW-4P,TKM28B-7.5-Y0.55KW-4P,TKM28B-7.5-Y0.75KW-4P,TKM28B-7.5-Y1.1KW-4P,TKM28B-7.5-Y1.5KW-4P,TKM28B-10-Y0.12KW-4P,TKM28B-10-Y0.18KW-4P,TKM28B-20-Y0.25KW-4P,TKM28B-10-Y0.37KW-4P,TKM28B-10-Y0.55KW-4P,TKM28B-10-Y0.75KW-4P,TKM28B-10-Y1.1KW-4P,TKM28B-10-Y1.5KW-4P,TKM28B-12.5-Y0.12KW-4P,TKM28B-12.5-Y0.18KW-4P,TKM28B-25-Y0.25KW-4P,TKM28B-12.5-Y0.37KW-4P,TKM28B-12.5-Y0.55KW-4P,TKM28B-12.5-Y0.75KW-4P,TKM28B-12.5-Y1.1KW-4P,TKM28B-12.5-Y1.5KW-4P,TKM28B-15-Y0.12KW-4P,TKM28B-15-Y0.18KW-4P,TKM28B-30-Y0.25KW-4P,TKM28B-15-Y0.37KW-4P,TKM28B-15-Y0.55KW-4P,TKM28B-15-Y0.75KW-4P,TKM28B-20-Y0.12KW-4P,TKM28B-20-Y0.18KW-4P,TKM28B-40-Y0.25KW-4P,TKM28B-20-Y0.37KW-4P,TKM28B-20-Y0.55KW-4P,TKM28B-20-Y0.75KW-4P,TKM28B-25-Y0.12KW-4P,TKM28B-25-Y0.18KW-4P,TKM28B-50-Y0.25KW-4P,TKM28B-25-Y0.37KW-4P,TKM28B-25-Y0.55KW-4P,TKM28B-25-Y0.75KW-4P,TKM28B-30-Y0.12KW-4P,TKM28B-30-Y0.18KW-4P,TKM28B-60-Y0.25KW-4P,TKM28B-30-Y0.37KW-4P,TKM28B-30-Y0.55KW-4P,TKM28B-30-Y0.75KW-4P,TKM28B-40-Y0.12KW-4P,TKM28B-40-Y0.18KW-4P,TKM28B-40-Y0.37KW-4P,TKM28B-40-Y0.55KW-4P,TKM28B-50-Y0.12KW-4P,TKM28B-50-Y0.18KW-4P,TKM28B-50-Y0.37KW-4P,TKM28B-60-Y0.12KW-4P,TKM28B-60-Y0.18KW-4P,TKM28B-60-Y0.37KW-4P

TKM28C减速机型号有：TKM28C-50-Y0.12KW-4P,TKM28C-50-Y0.18KW-4P,TKM28C-50-Y0.25KW-4P,TKM28C-60-Y0.12KW-4P,TKM28C-60-Y0.18KW-4P,TKM28C-60-Y0.25KW-4P,TKM28C-75-Y0.12KW-4P,TKM28C-75-Y0.18KW-4P,TKM28C-100-Y0.12KW-4P,TKM28C-100-Y0.18KW-4P,TKM28C-125-Y0.12KW-4P,TKM28C-125-Y0.18KW-4P,TKM28C-150-Y0.12KW-4P,TKM28C-200-Y0.12KW-4P,TKM28C-250-Y0.12KW-4P

核心产品参数

• 适配型号：TKM28B（2级传动）、TKM28C（3级传动）

• 电机功率：0.12KW - 1.5KW

• 减速比范围：7.5 - 300比

• 传动效率：95%（伞齿轮与斜齿轮组合传动）

•

•


•


产品
核心优势

• 传动效率高节能，替代蜗轮蜗杆
  内部采用精密的伞齿轮与斜齿轮传动结构，传动效率高达95%。相比传统蜗轮蜗杆减速机（通常效率在60%-70%左右），TKM28系列能大幅减少能量损耗，实现真正的节能环保，并有效降低长期运行成本。

• 完美兼容，升级无忧
  专为替代NMRV050蜗轮蜗杆减速机而设计，安装尺寸完全兼容。在设备升级或替换时，无需更改原有机械结构，即可直接安装使用，极大降低了改造难度与时间成本。

• 动力强劲，规格齐全
  提供TKM28B和TKM28C两种内部结构，覆盖7.5至300的宽广减速比范围，并适配0.12KW至1.5KW的电机功率。无论是需要低速大扭矩，还是精密传动控制，都能提供精准的动力匹配。

• 结构紧凑，运行平稳
  得益于斜齿-准双曲面齿轮的优化设计，该系列减速机具有体积小、重量轻的特点。齿轮经过高精度加工与硬齿面处理，啮合更顺滑，确保了设备在长期运行中具备低噪音、高稳定性的优异表现。

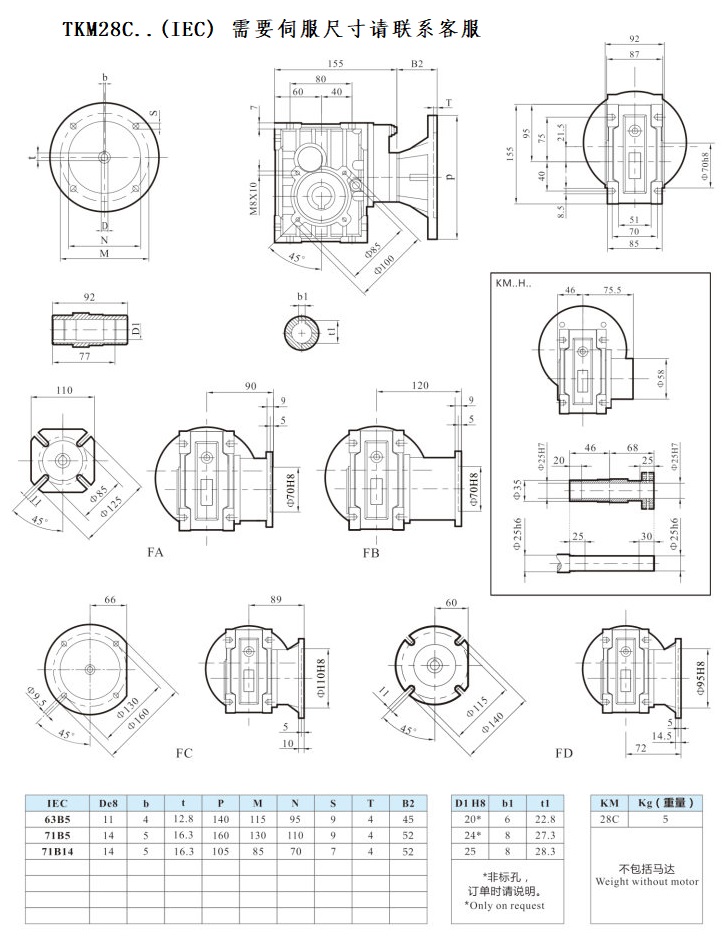

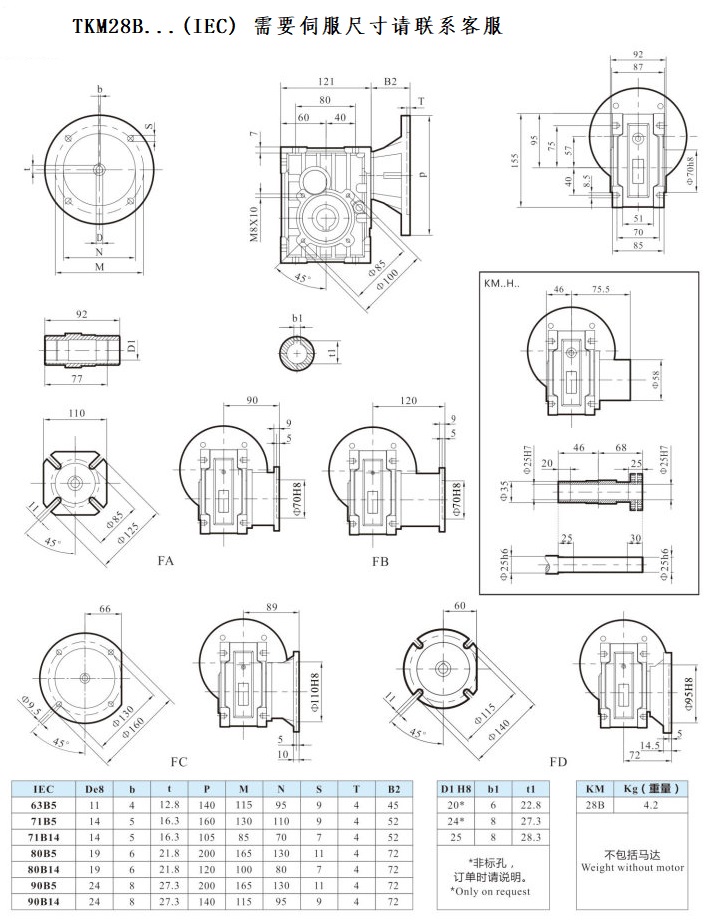

• 下面是TKM28减速电机的安装尺寸，需要高清安装尺寸的请联系客服

•

•


适用领域

TKM28系列减速机广泛应用于各类自动化机械设备中，如食品饮料机械、包装机械、纺织机械、输送带、木工机械等，是提升设备整体性能与传动效率的理想选择。
